55mm PET Preform
Precision-engineered preforms for still water, CSD, and juice applications -- available in custom weights, colors, and wall thickness.

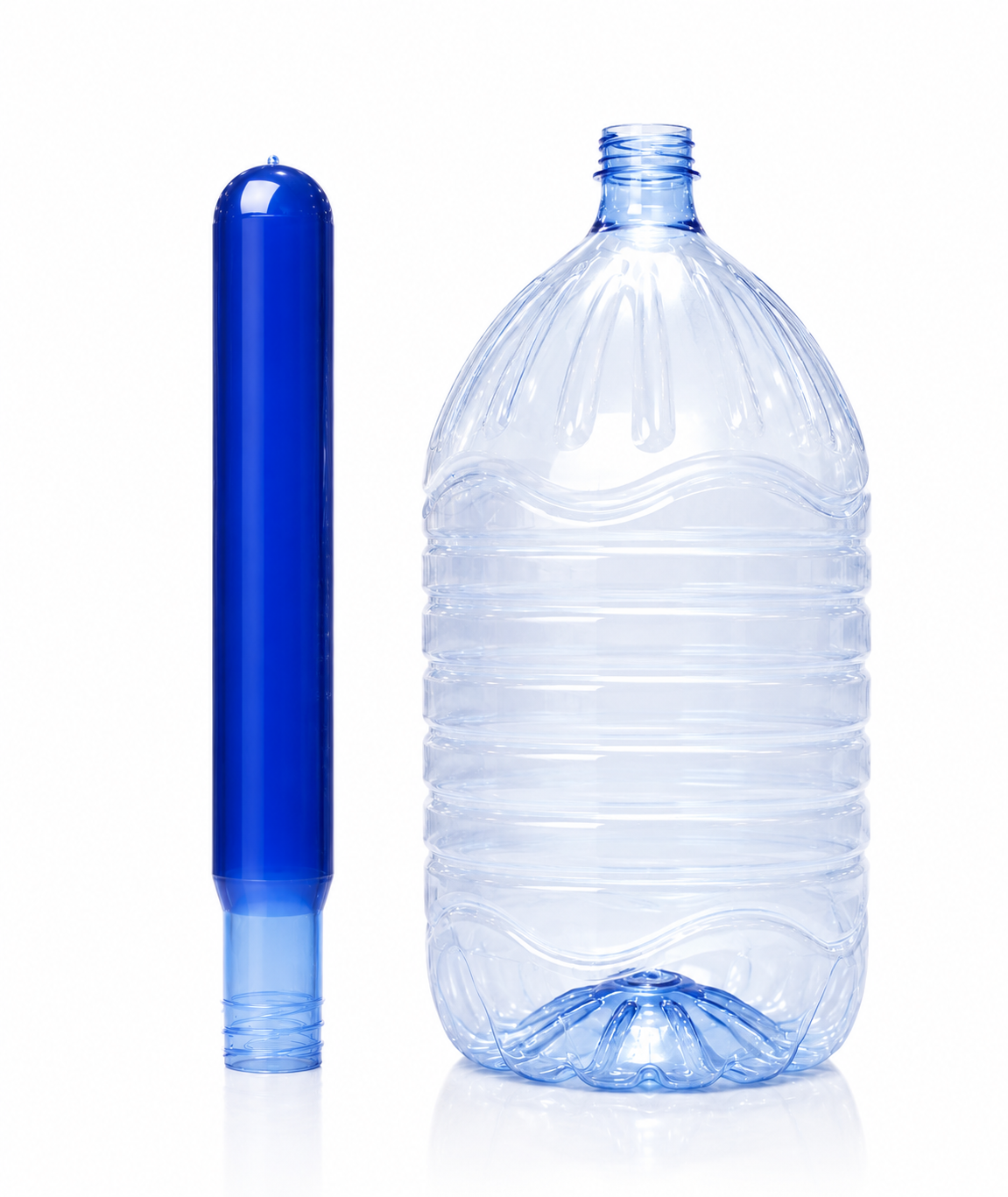

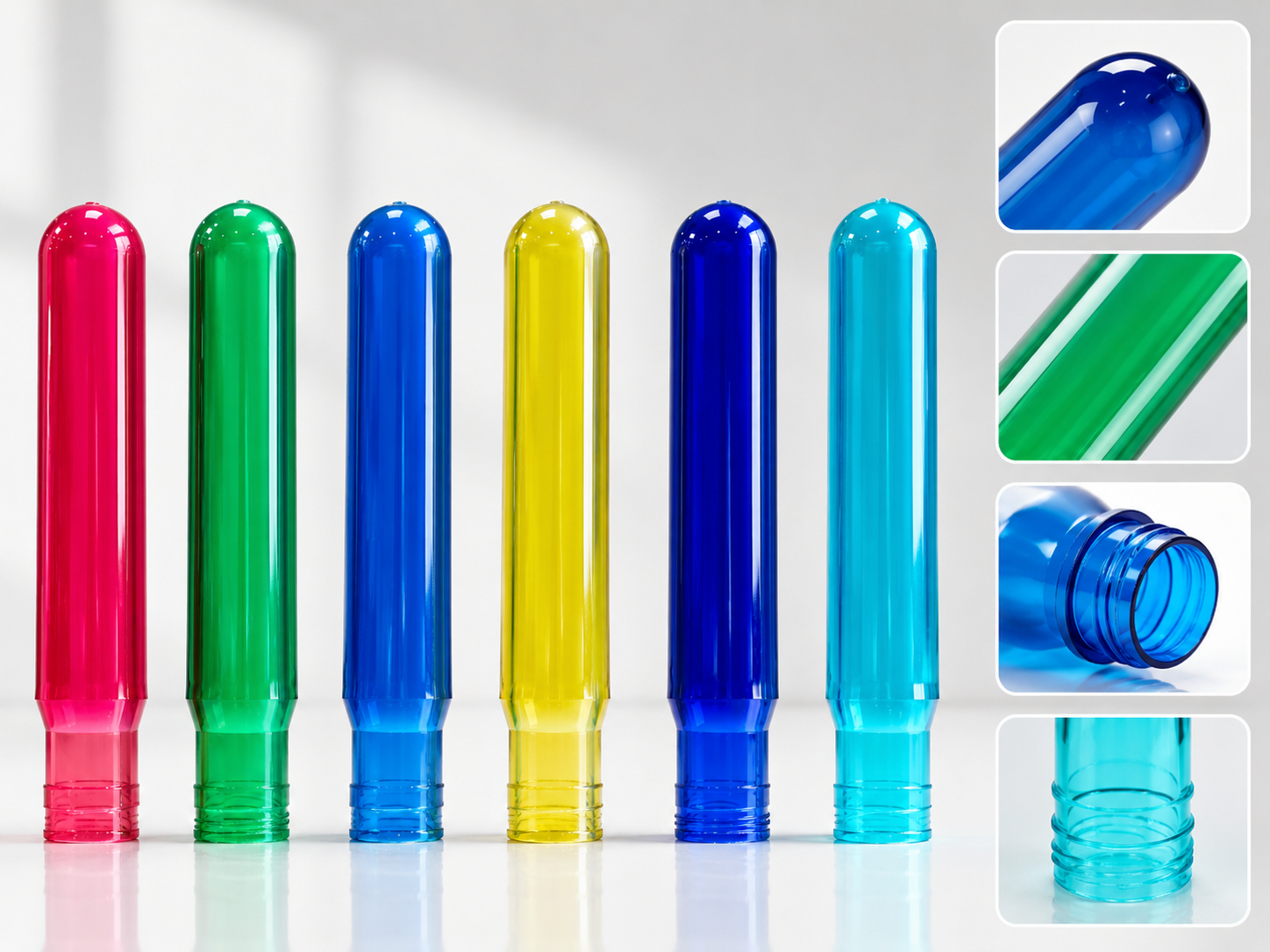

55mm PET Preform for Large Water Containers
Engineered for 3-gallon, 5-gallon, and 18.9L/20L reusable water barrels. Available in screw neck and press cap configurations -- fully customizable to match your bottle design and blowing mold.
Product Highlights
The 55mm PET preform is the industry-standard choice for large-volume water containers. Note: neck type (threaded vs. press cap) must be confirmed based on your specific bottle cap, barrel design, and blowing mold configuration.
-
Food-Grade PET Resin
Made from certified food-grade PET resin compliant with FDA, REACH, and RoHS standards -- safe for direct contact with drinking water.
-
Dual Cap Compatibility
Supports both screw neck and press cap neck types. The optimal neck type depends on your cap supplier, barrel design, and blow mold -- we help you confirm the right configuration.
-
Wide Customization Range
Customize weight (430g-800g), color (clear, blue, light blue, or custom), neck type, and bottle capacity (3 gal / 5 gal / 18.9L / 20L) to match your exact requirements.
-
Flexible Packaging & Logistics
Shipped in cartons, woven bags, or palletized packing -- optimized for your warehouse and logistics workflow with stable global export support.
-
100% Factory QC Inspection
Every unit passes full factory inspection. ISO 9001 sampling ensures consistent quality across every batch, backed by 5+ year QC engineers on each production line.
Full Specifications
55mm PET Preform -- Technical Data Sheet
| Item | Specification |
|---|---|
| Product Name | 55mm PET Preform |
| Neck Size | 55mm |
| Neck Type |
Screw neck / Press cap option
⚠ Must be confirmed based on customer's bottle cap, barrel design, and blowing mold configuration. |
| Material | Food-grade PET resin FDA / REACH Compliant |
| Weight | 430g - 800g, customizable |
| Bottle Capacity | 3 gallon / 5 gallon / 18.9L / 20L |
| Color |
Clear
Blue
Light Blue
Custom Colors
|
| Application | Large water bottles, reusable water barrels, drinking water containers |
| Cap Support | Screw cap, press cap, leak-proof cap |
| Handle Support | Optional, based on bottle design |
| Customization | Weight, color, neck type, bottle capacity, packaging |
| MOQ | 10,000 pcs |
| Packaging | Carton, woven bag, or palletized packing |
| Certifications |
ISO 9001
FDA
CE
SGS
REACH
RoHS
|
Get Your Custom 55mm Preform Quote
Not sure about neck type or weight? Our engineers will review your bottle design and blowing mold specs to recommend the ideal configuration -- at no cost.
Engineered for
Large-Format Water Containers
Our 55mm neck finish PET preforms are purpose-built for high-capacity water packaging -- delivering the wall strength, sealing integrity, and reusability that large-volume buyers demand.

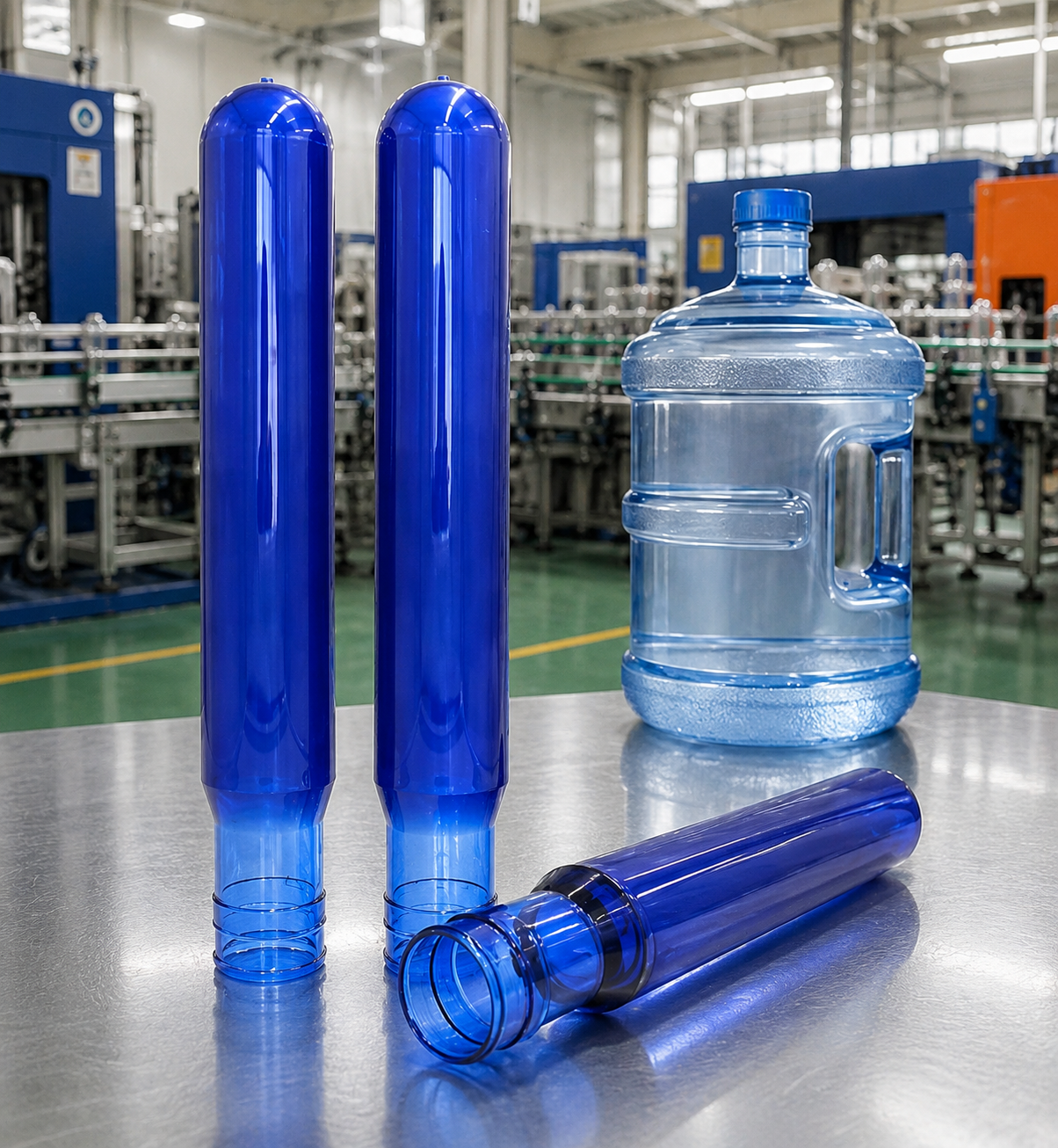

5-Gallon Water Bottle
Preform
The 55mm preform is the industry-standard choice for 5-gallon (18.9L) bottled water. Designed for commercial water dispensers and direct delivery, it must meet the highest standards for structural integrity, airtight sealing, and multi-use durability -- all of which our preforms deliver.
Optimized preform weight ensures sufficient wall thickness for large-volume bottles, preventing collapse under load.
Standard 55mm thread profile matches universal water dispenser caps, ensuring seamless fit across all major equipment.
High-grade PET resin formulation withstands repeated wash-and-refill cycles without yellowing, cracking, or odor retention.
Reinforced neck and body geometry resist stacking pressure and impact during long-haul logistics and warehouse storage.
Beyond the 5-gallon format, our 55mm preforms are also used across a range of large water container applications -- each with specific performance demands we're built to meet.
3-Gallon Water Bottle
Stable blowing performance and clean appearance for office and home dispensers.
18.9L Bottled Water
Cap-matching precision and transport strength for bulk commercial water delivery.
20L Water Barrel
Heavy gram weight and anti-deformation design for high-capacity industrial barrels.
Reusable Water Container
Impact resistance and longer service life for multi-trip reusable container programs.
Drinking Water Delivery
Handle-compatible design and reinforced neck strength for door-to-door delivery operations.
Get a tailored quote in 24 hours. Share your volume, specifications, and delivery requirements -- we handle the rest with 20+ years of manufacturing expertise.
55mm Neck, Cap & Handle
Matching Guide
For 5-gallon water bottles, the neck finish must match the cap, handle design, bottle mold, and filling line. Before production, we confirm the neck type, cap sample, bottle drawing, and target bottle capacity to reduce leakage, poor sealing, neck deformation, or mold mismatch.
The industry-standard neck finish for 5-gallon (18.9L) water bottles, engineered for leak-proof sealing and high-throughput filling lines worldwide.
- 5-gallon & large water bottles
- Bulk liquid & beverage packaging
- Leak-proof cap & handle systems
Confirms 55mm cap compatibility with the preform neck finish
Affects sealing integrity and filling line compatibility
Aids bottle handling during filling and improves structural strength
Critical for large water bottle ergonomics and grip stability
Directly reduces leakage risk and ensures proper seal on filling lines
Ensures stable blowing performance and consistent bottle dimensions
Pre-production confirmation: We verify neck type, cap sample, bottle drawing, and target capacity before every order to eliminate compatibility issues.
Need a Custom 55mm Preform Solution?
55mm neck PET preforms are often paired with leak-proof caps or optional handles for large water bottle and liquid packaging applications. Share your specifications and we'll confirm full compatibility before production.
Recommended Weight by
Bottle Capacity
Not sure which preform weight suits your bottle? Use this reference chart -- trusted by procurement managers and beverage brands worldwide to spec the right preform the first time.
Industry Note
Some suppliers use a 55mm 430g preform for 13L mineral water bottles. For 5-gallon / 20L water bottles, common options include 55mm 700g, 730g, 750g, and 800g preforms depending on wall thickness and reuse requirements.
| Bottle Capacity | Common Weight Range | Neck Size | Application | |
|---|---|---|---|---|
|
3 Gallon Water Bottle
~11.4L capacity
|
340g - 480g
|
55mm |
Smaller reusable water bottle
|
Reusable |
|
5 Gallon Water Bottle
Popular
18.9L / 20L capacity
|
650g - 800g
|
55mm |
18.9L / 20L bottled water dispensers
|
Reusable |
|
13L - 17L Bottle
Mid-size capacity
|
350g - 430g
|
55mm |
Disposable or lighter water bottle
|
Disposable |
|
Heavy-Duty 5 Gallon
Premium
Reusable water barrel
|
730g - 800g
|
55mm |
High-strength reusable water barrel
|
Heavy-Duty |
Smaller reusable water bottle
18.9L / 20L bottled water dispensers
Disposable or lighter water bottle
High-strength reusable water barrel
Weight Range at a Glance
Heavier preforms = thicker walls = longer service life
Our engineers will recommend the exact preform weight and neck size for your bottle -- at no cost.
Custom 55mm PET Preforms
Engineered to Your Specs
We customize 55mm PET preforms based on your bottle capacity, cap type, handle design, bottle mold, and reuse requirements. From concept to production -- precision-built for your brand.
Customizable Options
Every parameter can be tailored to match your production requirements and brand specifications.
Preform Weight
Custom gram weight to match your bottle wall thickness and structural requirements.
Neck Type
55mm standard neck or custom thread profiles for specific cap compatibility.
Bottle Capacity
Designed for a wide range of bottle volumes -- from small consumer sizes to large containers.
Bottle Shape
Round, square, oval, or fully custom bottle geometry -- we support your mold design.
Cap Matching
Perfectly matched cap and neck thread profiles -- flip-top, screw, tamper-evident, and more.
Handle Matching
Integrated or clip-on handle designs for large-capacity bottles requiring ergonomic grip.
Color
Crystal clear, tinted, or fully custom brand colors -- matched to Pantone or your sample.
Packaging Method
Bulk bag, carton box, or custom packaging -- optimized for safe transit and easy warehouse handling.
Mold Support
New mold development, mold modification, or existing mold adaptation -- our engineering team supports the full mold lifecycle for your preform design.
Already Have a Design?
We Review Before We Produce.
We customize 55mm PET preforms based on your bottle capacity, cap type, handle design, bottle mold, and reuse requirements. If you already have a bottle drawing, cap sample, or finished bottle sample, we can review the details before production.
Our engineering team will assess compatibility, flag any potential issues, and confirm production feasibility -- all before a single unit is made.
Get a personalized quote within 24 hours -- our team is ready to review your specs.
Quality Control Points for
Large Water Bottle PET Preforms
Every preform we manufacture is engineered to meet the demanding requirements of large-format water bottle production -- from raw material to final inspection.
Stable 55mm Neck Dimension
A stable neck finish helps improve cap sealing and reduce leakage risk -- critical for large water bottle applications where seal integrity is non-negotiable.
Uniform Wall Thickness
Uniform material distribution helps the large bottle stretch evenly during blow molding -- ensuring consistent bottle shape and reducing material waste.
Strong Shoulder & Bottom Area
Large water bottles need stronger shoulders and bottoms to reduce deformation during filling, lifting, and transport -- maintaining structural integrity throughout the supply chain.
High Clarity PET Material
Clear PET resin helps finished water bottles look clean and suitable for drinking water packaging -- giving end consumers confidence in product purity and brand quality.
Batch Consistency
Stable weight and dimensions help reduce blow molding waste and improve production efficiency -- ensuring your downstream manufacturing runs smoothly with minimal rejects.
QC System
Every preform passes all 5 quality checkpoints before shipment.
Factory Supply Advantages
We supply 55mm PET preforms in bulk directly from our factory -- serving bottled water brands, water delivery companies, bottle factories, and packaging distributors worldwide.
Direct Factory Supply
We supply 55mm PET preforms in bulk for bottled water brands, water delivery companies, bottle factories, and packaging distributors -- eliminating middlemen for better pricing and faster lead times.
- 55mm neck finish standard
- High-volume bulk orders accepted
- Stable supply chain guaranteed
3 Gallon & 5 Gallon Support
We fully support both 3 gallon and 5 gallon water bottle preform projects -- giving you the flexibility to serve multiple market segments from a single trusted supplier.
Custom Weight Matching
We help match the right gram weight to your bottle capacity, wall thickness, reuse cycle, and transport needs -- ensuring optimal performance and cost efficiency for your specific application.
Cap & Handle Matching
We help confirm cap type, handle structure, and neck design before production starts -- preventing costly mismatches and ensuring your full bottle assembly works perfectly.
Export Packaging Support
Carton, woven bag, or palletized packing can be arranged based on your order quantity and shipping method -- ensuring safe delivery and compliant export documentation.
Get Your Custom PET Preform Quote
Tell us your bottle size, quantity, and packaging requirements -- our factory team will respond within 24 hours with a competitive price.
Send These Details for a
Fast Quote
To prepare an accurate quote for your 55mm PET preform order, please share the following specifications with us.
-
1Neck Size55mm
-
2Neck TypeScrew neck or press cap
-
3Preform WeightSpecify in grams (g)
-
4Bottle Capacity3 gal / 5 gal / 18.9L / 20L
-
5Bottle DrawingTechnical drawing or sample
-
6Cap TypeStandard, tamper-evident, etc.
-
7Handle RequirementWith or without handle
-
8ColorClear, blue, custom color
-
9QuantityUnits per order / annual volume
-
10Destination PortCountry & port of delivery
-
11Packaging RequirementBulk bag, carton, pallet, etc.
Matched for Your
Water Bottle Line
Send your bottle capacity, preform weight, neck type, cap sample, and order quantity. We will help match the right 55mm PET preform for your water bottle production line.
Send your bottle specs now -- get a matched solution and competitive price within 24 hours.
Everything You Need to Know About
55mm PET Preforms
Find answers to the most common questions about our 55mm PET preform products -- from specifications and customization to quoting details.
Q1 What is a 55mm PET preform used for?
55mm PET preforms are mainly used for 3 gallon, 5 gallon, 18.9L, and 20L large water bottles -- the standard sizes widely used in the bottled water and beverage industry worldwide.
Q2 What weight is suitable for a 5 gallon PET preform?
Common 5 gallon PET preform weights include 650g, 680g, 700g, 730g, 750g, and 800g, depending on bottle design and reuse requirements. Heavier preforms generally provide greater durability for multi-use bottles.
Q3 Can 55mm PET preforms be used for reusable water bottles?
Yes -- suitable for reusable 5 gallon water bottles.
Heavy-weight 55mm PET preforms are suitable for reusable 5 gallon water bottles when the bottle design, wall thickness, and material distribution are properly matched to the application's reuse cycles and pressure requirements.
Q4 Is 55mm PET preform available with screw neck?
Yes. 55mm PET preforms can be supplied with screw neck designs, and press cap options can also be discussed based on your bottle system and capping equipment compatibility.
Q5 Can you customize the weight and color?
Yes. We can customize preform weight, color, neck type, and packaging based on your bottle capacity and production needs -- offering full OEM and ODM support for global brands.
Q6 What details do you need before quoting?
To prepare an accurate quote, please provide the following details:
- Preform weight
- Bottle capacity
- Neck type & cap type
- Color requirements
- Order quantity
- Destination port
- Bottle drawing (if available)
Get a Custom Quote
Tell us your 55mm PET preform requirements and receive a detailed quote within 24 hours.
Quality Certifications
55mm Preform Key Specs
Our technical team is ready to answer your questions and provide a tailored solution.
Get Your Custom
Quote Today
Tell us your requirements and our team will prepare a tailored proposal within 24 hours -- no commitment required.
-
Response guaranteed within 24 hours
-
Free consultation with no obligation
-
Custom OEM & ODM solutions available
-
ISO 9001 certified quality assurance
